Big Bore 1949 - 1953 Ford 293 Flathead Rotating Assembly
PART NUMBER:
SCA-1-94617
Big Bore, 293 CI Flathead Ford Rotating Assembly. Suits 239 Ford late model blocks without bellhousing (1949 - 1953). Features 9000 Series cast crankshaft, domed, premium forged aluminum pistons with file fit rings, forged steel H-Beam connecting rods, and quality rod and main bearings. Non-Balanced. Bore Size: 3.3125. Piston/Ring Oversize: 0.125". Stroke: 4.250". Connecting Rod Length: 7.000". Compression: 10.1 to 1 w/ 74 cc Head. SOLD AS KIT
Oversize / Overweight Shipping
:
$
2,149.99
Qty:
Overview
FEATURES:
Suits 239 Late Model Blocks Without Bell Housing (1949-1953)
293 ci Ford Flathead
Bore Size: 3.3125"
Piston/Ring Oversize: 0.125"
Stroke: 4.250"
Rod Length: 7.000"
Compression: 10.1 to 1 w/ 74 cc Head
Non Balanced
Big bore, 239 / 293 Ford Flathead street and strip rotating assembly. Set up for 1949 - 1953 late model blocks without bellhousing. Features a SCAT 9000 series cast steel crankshaft, domed premium forged aluminum pistons with file fit rings, forged steel H-beam connecting rods with ARP 3/8" cap bolts, and quality rod and main bearings. Designed to be internally balanced.

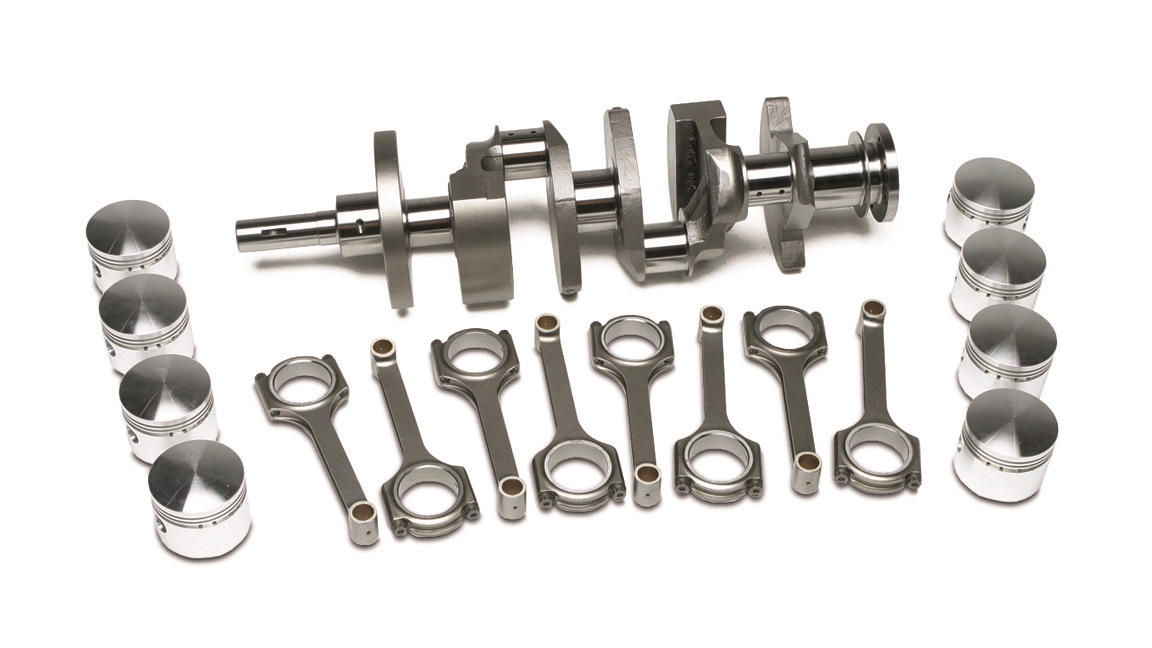

WHAT'S INCLUDED:
1 (ONE)
9000 Series Cast Steel Crankshaft
8
(EIGHT)
Premium Forged Aluminum Pistons
8
(EIGHT)
Forged Steel H-Beam Connecting Rods
1 (ONE)
Rod Bearing and Main Bearing Set
1 (ONE)
File Fit Piston Ring Set
NOTES & TIPS:
SCAT does not manufacture all components in their complete rotating assemblies. Depending on the kit, some parts such as rod and main bearings, and pistons and piston rings, are sourced from other manufactures such as Clevite 77, Federal Mogul, King, SRP/JE, Ross, KB, Mahle, ARP, and more.
This kit is NOT balanced. Pre-Balanced kits are available on this store. Search for
SCA-1-94617BI
in the search box to learn more.
