Hot Rod Automatic Brake Pedal Steel

Hot Rod Steel Brake Pedal for Automatic Transmissions

PART NUMBER:

RSC-50113

1928 - 1934 Ford style brake pedal for automatic transmission applications. Plain steel with pre installed bushings. For use with standard, aftermarket 0.875" pedal shafts. Pedal ratio: 6:1. Pedal offset 3/4". Accepts 7/16" or smaller pedal pad bolt diameters. See Technical Specifications below for part dimensions. SOLD EACH

: $99.99

Qty:

Overview

FEATURES:

Fits Pedal Shaft Diameter: 0.875"
Pedal Ratio: 6:1

This pedal is designed for use in early 1928 - 1934 Hot Rods using aftermarket pedal shafts and automatic transmissions. Accepts 7/16" or smaller pedal pad bolts. All bushings are pre installed and reamed to fit the common after market 0.875" pedal shafts. See Technical Specifications below for specific dimensions.

WHAT'S INCLUDED:

1 (ONE)

Steel Brake Pedal With Pre Fit & Reamed Bushings

NOTES & TIPS:

This is not a stock replacement part for any original car. It was designed for aftermarket frames and may require frame modifications based on application. Refer to Technical Specifications below to ensure this part will fit your application.

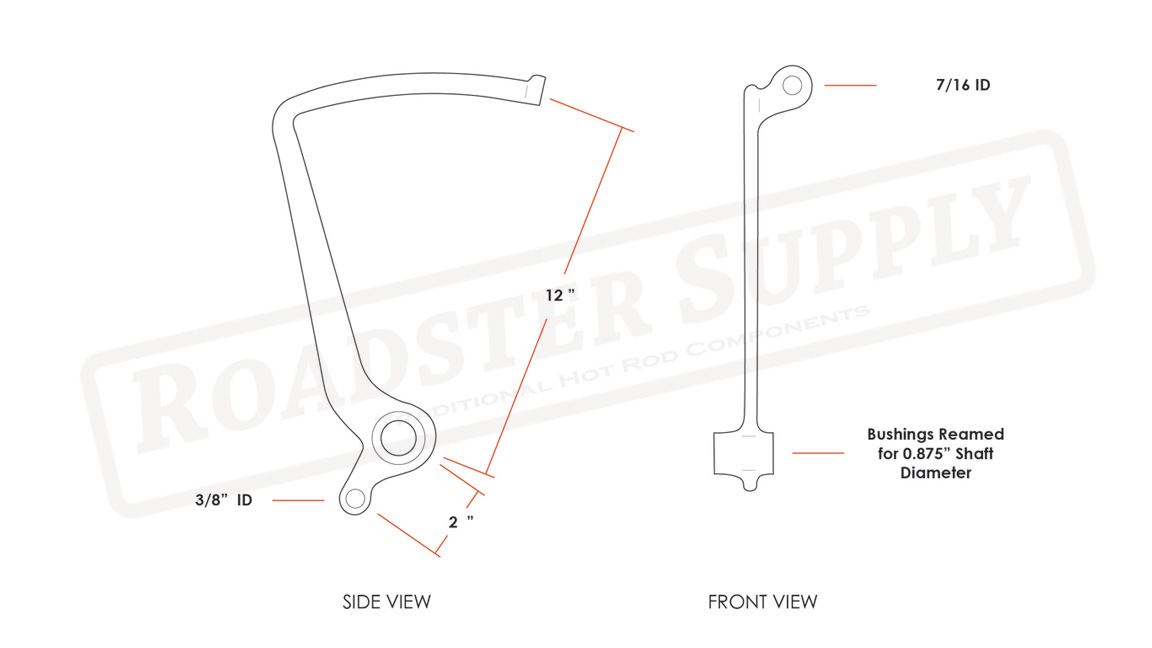

Illustrations in the Technical Specifications tab are for reference of dimensions ONLY. They may not be an accurate reflection of what the part looks like and may not be drawn to scale.
