Master Cylinder and 7" Single Brake Booster Combo 1" Bore

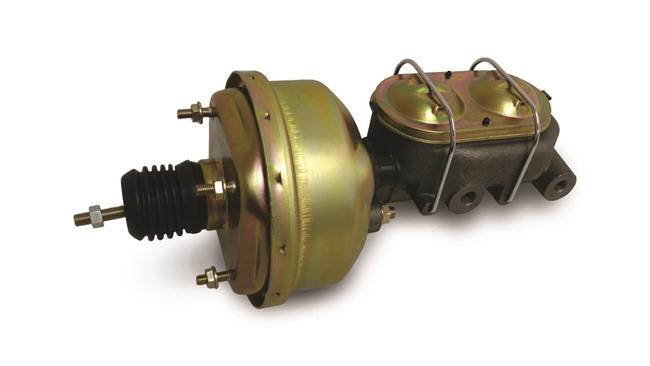

7 Inch Single Brake Booster and Master Cylinder Combo 1 Inch Bore



PART NUMBER: RSC-55110

Universal application. Zinc coated 7" OD single diaphragm brake booster. Steel 1" bore, dual outlet master cylinder. Run brake lines from either side of master cylinder. Includes plugs to cap other side. 11 7/8" From mounting flange to end of master cylinder. Brand new reproduction. SOLD AS KIT
: $149.99

Qty:

Overview

FEATURES:

Universal Application Disc/Disc Disc/Drum
11 7/8" from mounting flange to end of master cylinder.
4 bolt mounting on 3 3/8" centers
For standard DOT 3 and DOT 4 brake fluids

Get your car stopping right with this new master booster combo. Featuring a compact 7" single diaphragm booster for added space on the firewall or under the floor and a 5 1/2" pushrod. The 1" bore master cylinder is built with dual outlets on both sides allowing brake lines to be run from either side and seperate lines for the front and rear brakes. Included plugs cap off the other two outlets. This kit is also available with a double diaphragm booster on this store. Search for Double Brake Booster Master Combo in the search box to learn more.


WHAT'S INCLUDED:


1 (ONE)
1" Bore Dual Outlet Master Cylinder
1 (ONE)7" Single Diaphragm Brake Booster


NOTES & TIPS:

When mounting this kit be sure to consider how to open the top of master cylinder to replace brake fluid. This is not a remote reservoir unit.

We recomend using residual valves (also available on this store) to control proper back pressure in brake lines.
