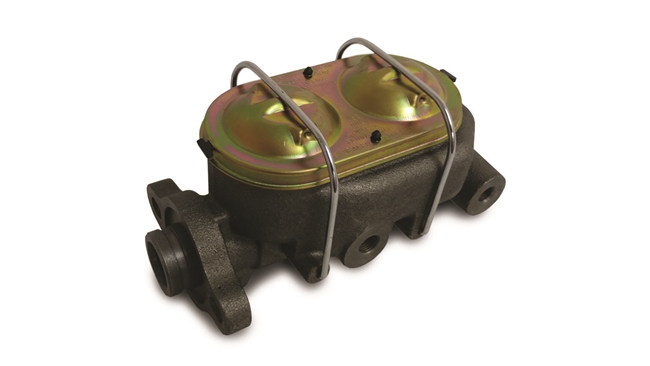

Universal Manual or Power Brake Master Cylinder 1" Bore

PART NUMBER:

RSC-55114

Universal application. Designed after the common Corvette high volume master cylinder. Cast iron construction with a 1" bore and dual outlets. Run brake lines from either side of master cylinder. Includes plugs to cap other side. Mounting bolt pattern: 3 1/8" - 3 3/8". Brand new reproduction. SOLD EACH

: $59.99

Qty:

Overview

FEATURES:

Universal Application Disc/Disc Disc/Drum
Mounting Flange: 3 1/8" - 3 3/8"
For standard DOT 3 and DOT 4 brake fluids

Designed after the common Corvette style high volume master cylinder. Cast Iron construction with a low, wide profile to fit in tight spots like under the floor board or firewall. Features a 1" bore with dual outlets on both sides allowing brake lines to be run from either side and seperate lines for the front and rear brakes. Included plugs cap off the other two outlets. Also includes piston extension sleve allowing for use with manual or power brake applications. High volume cappacity allows for disc/disc or disc/drum set ups.

WHAT'S INCLUDED:

1 (ONE)	Plain 1" Bore Dual Outlet Master Cylinder
1 (ONE)	Piston Extension Sleeve
2 (TWO)	Plugs for Unused Outlets

NOTES & TIPS:

When mounting this master be sure to consider how to open the top to replace brake fluid. This is not a remote reservoir unit.

We recomend using residual valves (also available on this store) to control proper back pressure in brake lines.
